Colloid mill works with shearing, grinding high-speed stirring. Grinding process occurs in the relative movement between the two teeth with one revolving in high speed and another still, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl. The above forces effectively evenly disperse, emulsify, smash the material.
Material
SUS304, 316L stainless steel
Surface
Mirror or matte, Ra<0.8μm
Application
Food, pharmaceutical industry, chemical industry, etc
OEM
Support custom
Colloid mill, second generation wet type ultrafine particles new type equipment
If you want to know more about the colloid mill, please feel free to contact us!

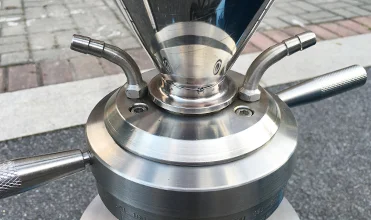

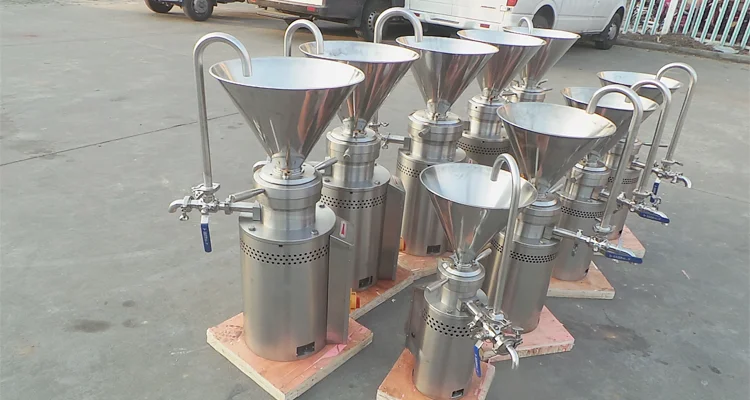

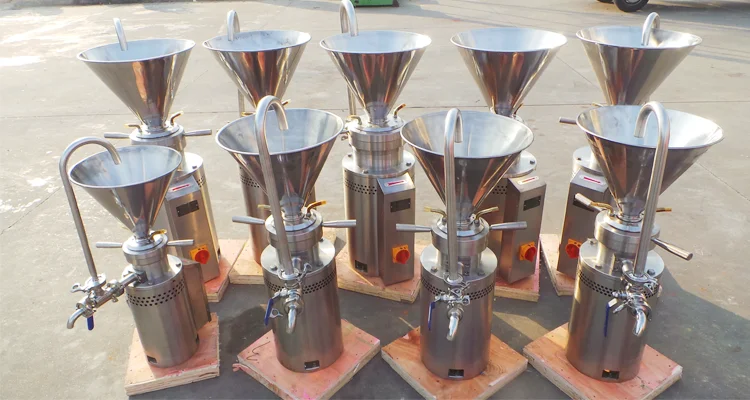

Product Show
Details

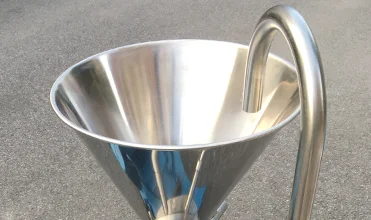

Hopper
304, 316L stainless steel material, sanitary and long life, widely used in industry, food, medicine and other industries. Customized size.

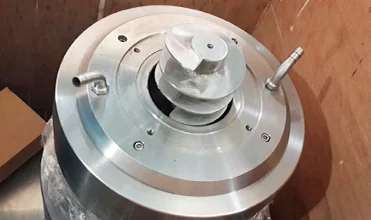

Teeth
High precision stainless steel mill, tight gear structure, 2800r/min speed grinding material in a moment.
Adjusting disk
Adjust fineness according to demand, about 2~40μm, easy to operate.
Outlet 1: square
Large outlet, fast speed, customizable, for example, peanut butter.
Outlet 2: clamp joint
Easy to install and remove, convenient for cleaning, for example, fruit juice. Choose different outlet according to different materials.
How To Choose
Model
Output(t/h)
Power(kw)
Size(mm)
Weight(kg)
Fineness(μm)
JML-50
0.01~0.1
1.5
270*500*700
55
2~40
JMF-50
0.01~0.1
1.1
255*500*700
50
2~40
JML-65
0.02~0.5
1.5
270*500*700
57
2~40
JMF-65
0.02~0.5
2.2
500*345*675
70
2~40
JMW-80
0.3~1
3
630*380*790
75
2~40
JML-80
0.3~1
3
630*380*790
85
2~40
JMF-80
0.3~1
4
800*645*980
140
2~40
Please contact us for more details. Support custom.
